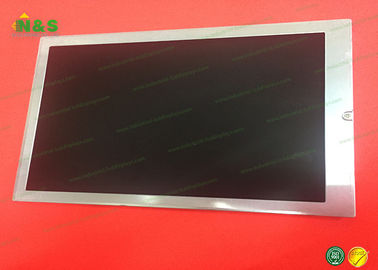

6.5 inch AA065VE01 TFT LCD Module Mitsubishi with 132.48×99.36 mm Active Area

6.5 inch AA065VE01 TFT LCD Module  Mitsubishi  with 	132.48×99.36 mm Active Area
6.5 inch AA065VE01 TFT LCD Module  Mitsubishi  with 	132.48×99.36 mm Active Area

Large Image :  6.5 inch AA065VE01 TFT LCD Module Mitsubishi with 132.48×99.36 mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA065VE01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

6.5 inch AA065VE01 TFT LCD Module Mitsubishi with 132.48×99.36 mm Active Area

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 6.5 Inch
Resolution: 640(RGB)×480 , VGA Display Mode: TN, Normally White, Transmissive
Active Area: 132.48×99.36 Mm Outline: 154×121×11.5 Mm
High Light:

tft lcd panel

,

tft lcd display module

6.5 inch AA065VE01 TFT LCD Module Mitsubishi with 132.48×99.36 mm Active Area

AA065VE01 Information



Panel Size : 6.5 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 122 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.069×0.207 mm (H×V)
Pixel Pitch : 0.207×0.207 mm (H×V)
Weight : 185g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 132.48×99.36 mm (H×V)
Bezel Area : 135.5×102.4 mm (H×V)
Outline Dimension : 154×121 mm (H×V)
Outline Depth : 7.1/11.5 (Typ./Max.) mm
Holes & Brackets : Face mounting holes (4-R1.25); Side mounting holes (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.30 (Max.)(5 points)
Sunlight Readable : N
