Product Details:
|
| Panel Size: | 3.5 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 Pins |
| High Light: | lcd display white screen,lcd panel screen |
||
| Panel Size : | 3.5 inch | |
| Dot Resolution : | 320(RGB)×240 (QVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 115 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.073×0.219 mm (H×V) | |
| Pixel Pitch : | 0.219×0.219 mm (H×V) | |
| Weight : | 29g (Typ.) | |
| Surface : |
|
|
| Active Area : | 70.08×52.56 mm (H×V) | |
| Bezel Area : | 72.88×55.36 mm (H×V) | |
| Outline Dimension : | 76.9×63.9 mm (H×V) | |
| Outline Depth : | 2.8±0.2 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 420 cd/m² (Typ.) | |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 25 (Typ.)(Tr+Td) | |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |
| TM046XYHP01 | Tianma | 4.7" | 540×960 |
| TL050VGXP01 | Tianma | 5.0" | 1080×1920 |
| TM060JYSP02 | Tianma | 6.0" | 720×1280 |
| TM045YYSP04 | Tianma | 4.5" | 480×854 |
| TM045YYSP02 | Tianma | 4.5" | 480×854 |
| TM016XYHP01 | Tianma | 1.6" | 256×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

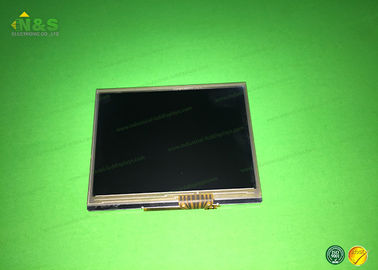

TM035KDH01 Picture
