Product Details:
|
| Panel Size: | 7.0 Inch | Resolution: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 50 Pins |
| High Light: | lcd display white screen,lcd panel screen |
||
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
|

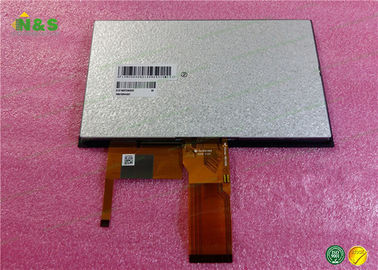

7.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 134 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) | |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) | |
| Weight : |
|
|
| Surface : | Reflection 4.0% (Max.) | |
| Active Area : | 154.08×85.92 mm (H×V) | |
| Bezel Area : | 157.08×89.39 mm (H×V) | |
| Outline Dimension : | 171.5×110.3 mm (H×V) | |
| Outline Depth : | 7.35±0.3 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded (Projected Capacitive Touch) | |
| Panel Cover : | With Cover Lens |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Display Mode : |
|
|
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 20 (Typ.)(Tr+Td) | |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 12 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33 (Max.)(9 points) | |
| Sunlight Readable : | N |
