Product Details:
|
Panel Size: | 5.0 Inch | Resolution: | 640(RGB)×480 , VGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Contrast Ratio: | 500:1 (Typ.) |
Frequency: | 60Hz | Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 50 Pins |
High Light: | black and white lcd display,lcd panel screen |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Panel Size : | 5.0 inch |
Dot Resolution : | 640(RGB)×480 (VGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 160 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0529×0.1587 mm (H×V) |
Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
Active Area : | 101.568×76.176 mm (H×V) |
Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right slugs |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : |
|
|
Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
Display Color : | 16.7M (6-bit + Dithering) | |
Color Gamut : | 50% NTSC (CIE1931) | |
Response Time : | 20 (Typ.)(Tr+Td) | |
Viewing Angle : | 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) | |
Viewing Direction : | 6 o'clock | |
White color Chromaticity : |
|
|
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |
Sunlight Readable : | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TL050JGXP01 | Tianma | 5.0" | 720×1280 |
TM050JYHP05 | Tianma | 5.0" | 720×1280 |
TM060XYSP01 | Tianma | 6.0" | 540×960 |
TM046XYHP02 | Tianma | 4.7" | 540×960 |
TL047JYXP01-00 | Tianma | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

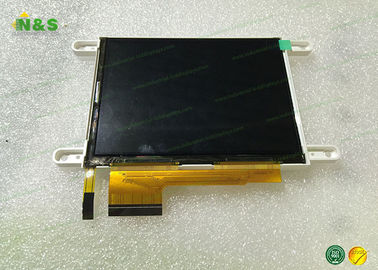

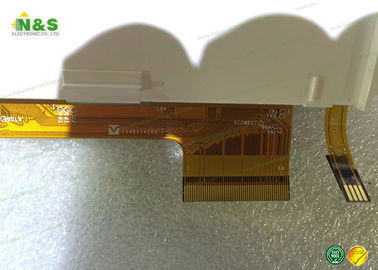

TM050QDH07 Picture
