Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 245.76×184.32 Mm | Outline: | 280×219×18.3 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

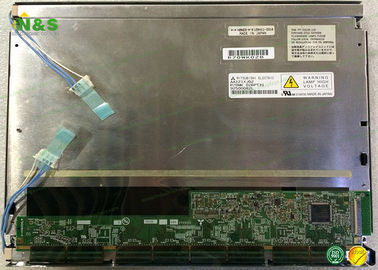

Normally White AA121XJ02 TFT LCD Module Mitsubishi 12.1 inch LCM for Industrial Application
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA104VJ02--T1 | Mitsubishi | 10.4" | 640×480 |
| AA084XB11--T2 | Mitsubishi | 8.4" | 1024×768 |
| AA084SB11--T2 | Mitsubishi | 8.4" | 800×600 |
| AA104XF12-CE-01 | Mitsubishi | 10.4" | 1024×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
AA121XJ02 Information
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 1.15Kgs (Typ.) |
| Surface : | Hard coating (2H), Antireflection |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×219 mm (H×V) |
| Outline Depth : | 17.8 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 1000 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/75/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
