Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 222.72×125.22 Mm | Outline: | 248.8×148×3.6 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

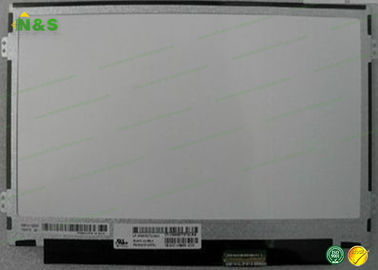

10.1 inch CLAA101WB03 TFT LCD Module CPT Normally White LCM with 222.726×125.222 mm
CLAA101WB03 Information
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 155 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.05435×0.16305 mm (H×V) |
| Pixel Pitch : | 0.16305×0.16305 mm (H×V) |
| Weight : | 180g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 222.726×125.222 mm (H×V) |
| Bezel Area : | 225.75×128.3 mm (H×V) |
| Outline Dimension : | 248.8×148 mm (H×V) |
| Outline Depth : | 3.6 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 3 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable : | N |
