Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.9 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 195.072×114.3 Mm | Outline: | 210×139.8×5.5 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

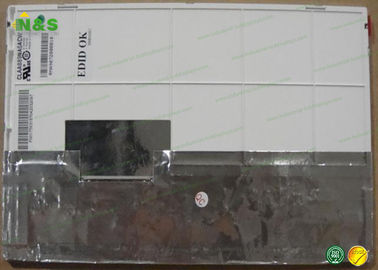

Normally White 8.9 inch CLAA089NA0BCW TFT LCD Module CPT with 210×139.8×5.5 mm Outline 60Hz
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
CLAA089NA0BCW Information
| Panel Size : | 8.9 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 191g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 195.072×114.3 mm (H×V) |
| Bezel Area : | 198.5×117.7 mm (H×V) |
| Outline Dimension : | 210×139.8 mm (H×V) |
| Outline Depth : | 5.2±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel; Face mounting holes (4-Φ2.2) on top, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
| CLAF055WB42 TXX | CPT | 5.5" | 720×1280 |
| CLAG050LM01 AX | CPT | 5.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
