Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 162×121.5 Mm | Outline: | 183×141×6.6 Mm |
| High Light: | tft lcd screen,tft lcd panel |
||

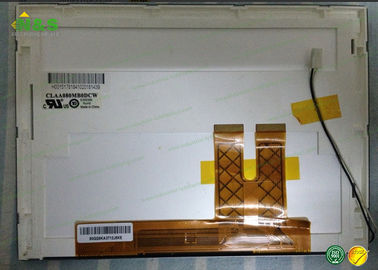

8.0 inch CLAA080MB0DCW TFT LCD Module CPT LCM 800×600 250 with 162×121.5 mm
CLAA080MB0DCW Information
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch : | 0.2025×0.2025 mm (H×V) |
| Weight : | 200g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 162×121.5 mm (H×V) |
| Bezel Area : | 165.8×124.8 mm (H×V) |
| Outline Dimension : | 183×141 mm (H×V) |
| Outline Depth : | 6.3±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./max.)(9 points) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1.ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
| CLAF055WB42 TXX | CPT | 5.5" | 720×1280 |
| CLAG050LM01 AX | CPT | 5.0" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
