Product Details:
|
| Panel Brand: | EDT | Panel Model: | EW32F00BCW |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.7 Inch |
| Resolution: | 320×240 , QVGA | Display Mode: | STN, Blue Mode, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
Monochrome 4.7 inch EW32F00BCW EDT LCD Panel with 95.97×71.97 mm
EW32F00BCW Specification
| Panel Brand : | EDT |
| Panel Model : | EW32F00BCW |
| Panel Type : | STN-LCD , LCM |
| Panel Size : | 4.7 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Blue mode, Transmissive |
| Active Area : | 95.97×71.97 mm |
| Outline : | 139×102.5×13.2 mm |
| Surface : | |
| Brightness : | 120 cd/m² (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 228/191 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel Data (4-bit) , 14 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Panel Size : | 4.7 inch |
| Dot Resolution : | 320×240 (QVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.300×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Active Area : | 95.97×71.97 mm (H×V) |
| Bezel Area : | 103.0×79.0 mm (H×V) |
| Outline Dimension : | 139×102.5 mm (H×V) |
| Outline Depth : | 9.4/13.2 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EW32F50FLY | EDT | 4.7" | 240×320 |
| EW32F50GLY | EDT | 4.7" | 240×320 |
| EW50961BMW | EDT | 5.7" | 320×240 |
| ER057010NM6 | EDT | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

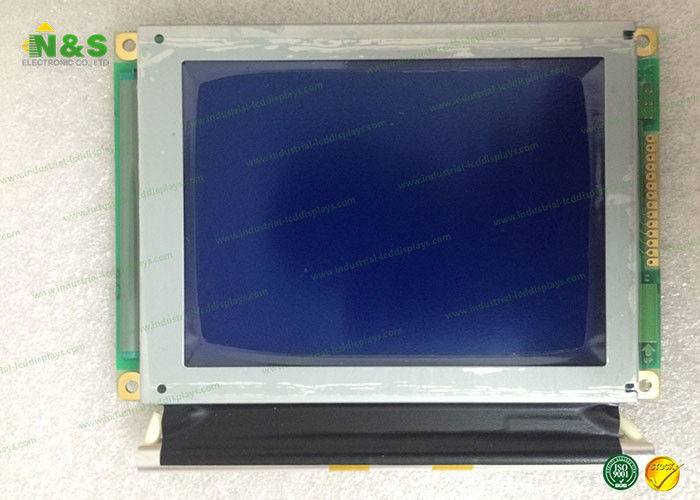

EW32F00BCW Picture
