Product Details:
|
| Model:: | TM050QDH04 | MFG: | Tianma LCD Displays |
|---|---|---|---|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 5.0 Inch |
| Response Time :: | 20 (Typ.)(Tr+Td) | Brightness :: | 350 Cd/m² (Typ.) |
| High Light: | lcd display white screen,lcd panel screen |
||

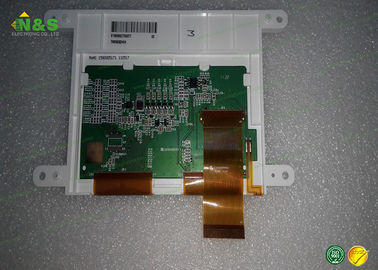

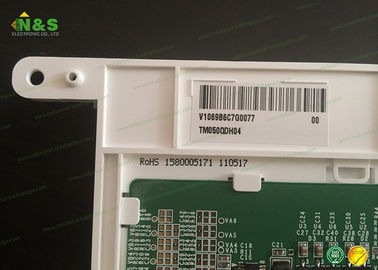

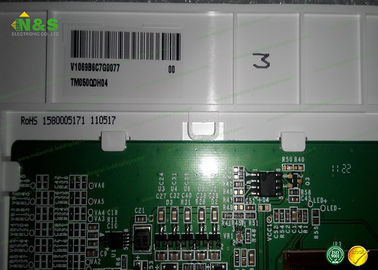

The new factory original Pegasus 5 inch 45PIN LCD digital TM050QDH04 350 cd/m² (Typ.)
| Panel Brand : | Tianma |
|---|---|
| Panel Model : | TM050QDH04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | Phone |
| Operating Temperature : | -20 ~ 70 °C |
| Storage Temperature : | -20 ~ 70 °C |
| RoHS : | ROHS |
| Panel Size : | 5.0“” |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 86±4.3g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 101.568×76.176 mm (H×V) |
| Outline Dimension : | 113.6×88.4 mm (H×V) |
| Outline Depth : | 8.1/10.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. One year warranty promise, we will replace the faulty battery with no extra charge or offer full refund.(human factors except).
5. Accept OEM service.
