Product Details:
|
| Panel Model: | A043FW02 V8 | Panel Brand: | AUO |
|---|---|---|---|
| Descrition: | 4.3 Inch | Active Area: | 95.04×53.856 Mm |
| Outline: | 105.5×67.2 Mm | Contrast Ratio: | 300:1 (Typ.) |
| Display Colors: | 16.7M (8-bit) | Frequency: | 60Hz |
| High Light: | car lcd display,car lcd panel |
||

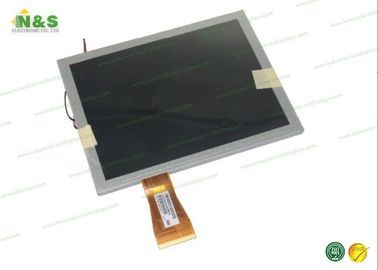

New and original A043FW02 V8 AUO 4.3 inch LCM 480×272 400 300:1 for Pocket TV
A043FW02 V8 Information
| Panel Model | A043FW02 V8 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,4.3 inch, 480×272 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 95.04×53.856 mm |
| Outline | 105.5×67.2 mm |
| Surface | Antiglare (Haze 8%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 10S1P WLED Without Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Panel Model | A043FW02 V8 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,4.3 inch, 480×272 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | A043FW02 V.8 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | 3 in 1 FPC |
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.320; Wy:0.340 |
| Sunlight Readable | N |
Why Choose US
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
AUO B070EW01 V0 General Features
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | AMVA, Normally Black, Transmissive |
|---|---|
| Active Area : | 150.72×94.2 mm |
| Outline : | 164.2×106.75×5.1 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
We Can Do for You
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
AUO B070EW01 V0 Backlight System
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 15K(Min.) (Hours) | |||||
| Lamp Voltage : | 20.3/21.0V (Typ./Max.) | |||||
| Lamps Power Consumption : | 1.45W (Max.) | |||||
| Interface Type : | Included in panel signal interface | |||||
| Lamp Driver Board : | No | |||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information
