Product Details:
|
| Panel Model: | C070FW02 V0 | Panel Brand: | AUO |
|---|---|---|---|
| Size: | 7.0 Inch | Panel Type: | A-Si TFT-LCD |
| Display Mode: | TN, Normally White | Active Area: | 154.08×86.58 Mm |
| Outline: | 164.9×100 Mm | Contrast Ratio: | 300:1 (Typ.) |
| High Light: | car lcd display,vehicle lcd display |
||

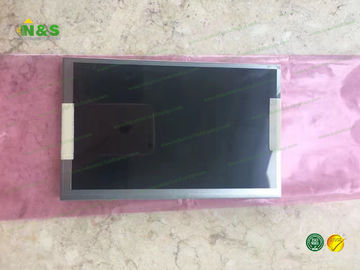

7 inch C070FW02 V0 AUO LCM 480×234 500 300:1 Full color
C070FW02 Infromation
| Panel Model | C070FW02 V0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,7.0 inch, 480×234 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 154.08×86.58 mm |
| Outline | 164.9×100 mm |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/60/40 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 1 pcs CCFL Without Driver |
| Signal Interface | TFT Specific Analog RGB , 30 pins |
| Input Voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Panel Model | C070FW02 V0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,7.0 inch, 480×234 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | C070FW02 V.0 |
| Operating Temperature | -30 ~ 75 °C |
| Storage Temperature | -40 ~ 85 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/60/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.320; Wy:0.360 |
| Sunlight Readable | N |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
