TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density

TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density

    • TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density
    • TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density
    • TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density
  • TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density

    Product Details:

    Place of Origin: Japan
    Brand Name: TIANMA
    Certification: ISO9001
    Model Number: TM035HBHT6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: TM035HBHT6 Panel Brand: TIANMA
    Descrition: 240×320 Panel Type: A-Si TFT-LCD
    Active Area: 53.64×71.52 Mm Outline: 64×85×4.43 Mm

    TM035HBHT6 TIANMA a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz

    TM035HBHT6 Basic Information

    Panel Model TM035HBHT6
    Panel Brand TIANMA
    Descrition a-Si TFT-LCD ,3.5 inch, 240×320
    Panel Type a-Si TFT-LCD
    Operating Temperature -20 ~ 60 °C
    Storage Temperature -30 ~ 70 °C
    Remarks R-EVT; 3 in 1 FPC; Left side FPC (17.00mm length)



    Why do you choose us?
    • Quick response to clients' enquiries within 24hrs.
    • More than 6-year experience in LCD screen field and professional team communication team.
    •Value quality and long-term cooperation to reach win-win relationship.

    TM035HBHT6 Mechanical Features

    Dot Resolution 240(RGB)×320 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 113 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0745×0.2235 mm (H×V)
    Pixel Pitch 0.2235×0.2235 mm (H×V)
    Weight 44.38g
    Surface Hard coating
    Active Area 53.64×71.52 mm (H×V)
    Outline Dimension 64×85 mm (H×V)
    Outline Depth 4.13±0.3 mm
    Landscape or Portrait Portrait type
    Touch Panel Embeded (4-wire Resistive)



    Feedback:

    (1) Your early confirmation will be highly appreciated after receiving the item.

    (2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

    M035HBHT6 Optical Features

    Display Mode ECB, Normally White, Transflective
    Brightness 80 cd/m² (Typ.)
    Contrast Ratio 2.5:1 (Typ.) (Reflective)
    Display Color 262K (6-bit)
    Color Gamut 37% NTSC (CIE1931)
    Response Time 35 (Typ.)(Tr+Td)
    Viewing Angle 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity Wx:0.301; Wy:0.321
    Reflectance Ratio 5.5% (Typ.)
    Sunlight Readable Y



    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    TM035HBHT6 Electronics Feature

    Reverse Scan No
    Driver IC Built-in ILI9341
    Time Controller (T-CON) Embedded T-CON







    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    TM060SDH01 Tianma 6.0" 800×600
    TM128128A4KFWGWC69-1 Tianma 1.5" 128×128
    TM12864LCAWG Tianma 2.2" 128×64
    TM9616AGHWGNA Tianma 0.84" 96×16
    TM128160LKFWG5-1 Tianma 1.8" 128×160
    TM320240EGFWVSWD Tianma 5.7" 320×240
    TM320240ECCWVSWD Tianma 5.7" 320×240
    TM240128ABCWVBYD Tianma 4.8" 240×128

    We also have other industrial LCD panels, pls contact to us for the further information

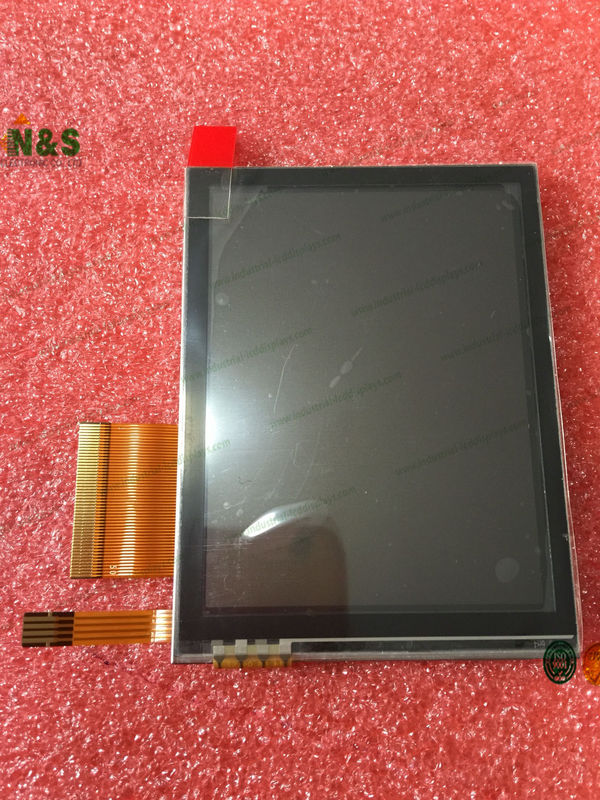

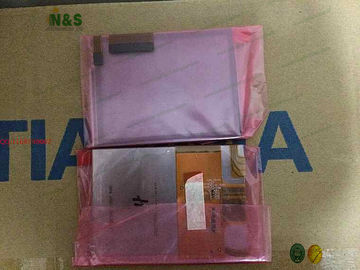

    TM035HBHT6     pictures



    TIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel DensityTIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel DensityTIANMA LCD Panel Screen , TM035HBHT6 Industrial Touch Screen Display 113 PPI Pixel Density
