5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display
5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display 5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

Large Image :  5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

Product Details:
Place of Origin: Japan
Brand Name: KOE
Certification: ISO9001
Model Number: TX14D25VM1BAA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display

Description
Panel Model: TX14D25VM1BAA Panel Brand: KOE
Descrition: 320×240 Panel Type: A-Si TFT-LCD
Active Area: 115.2×86.4 Mm Outline: 131×102.2×11.4 Mm
High Light:

medical lcd panel

,

medical grade display

New and original TX14D25VM1BAA KOE a-Si TFT-LCD ,5.7 inch, 320×240 for Industrial Application



TX14D25VM1BAA Basic Information

Panel Model TX14D25VM1BAA
Panel Brand KOE
Descrition a-Si TFT-LCD ,5.7 inch, 320×240
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.0G (19.6 m/s²)



Packaging & Shipping:

Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,

TX14D25VM1BAA Mechanical Features

Dot Resolution 320(RGB)×240 (QVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 70 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.120×0.360 mm (H×V)
Pixel Pitch 0.360×0.360 mm (H×V)
Weight 142g (Typ.)
Active Area 115.2×86.4 mm (H×V)
Bezel Area 119.4×90.6 mm (H×V)
Outline Dimension 131×102.2 mm (H×V)
Outline Depth 9.6/11.4 (Typ./Max.) mm
Holes & Brackets Rear mounting Pole (4-Φ2.4)
Landscape or Portrait Landscape type
Touch Panel Without





Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

TX14D25VM1BAA Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 450 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 45 (Typ.)(Tr+Td)
Viewing Angle 60/60/75/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 12 o'clock
White color Chromaticity Wx:0.310; Wy:0.330
White Variation 1.43 (Max.)(9 points)
Sunlight Readable N





Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

TX14D25VM1BAA Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
SX19V010 KOE 7.5" 640×480
SX31S009-A01 KOE 12.1" 800×600
SX31S009 KOE 12.1" 800×600
SX31S008 KOE 12.1" 800×600
SX31S007 KOE 12.1" 800×600
SX31S004 KOE 12.1" 800×600
SX31S003 KOE 12.1" 800×600
SX31S002 KOE 12.1" 800×600



We also have other industrial LCD panels, pls contact to us for the further information

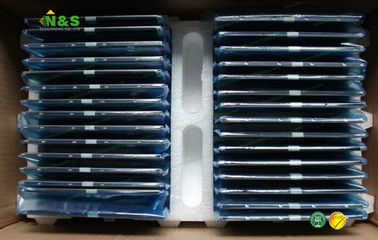

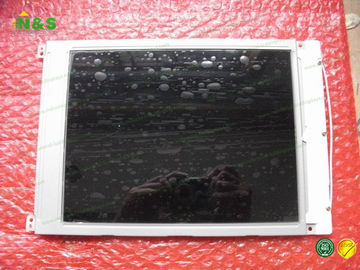

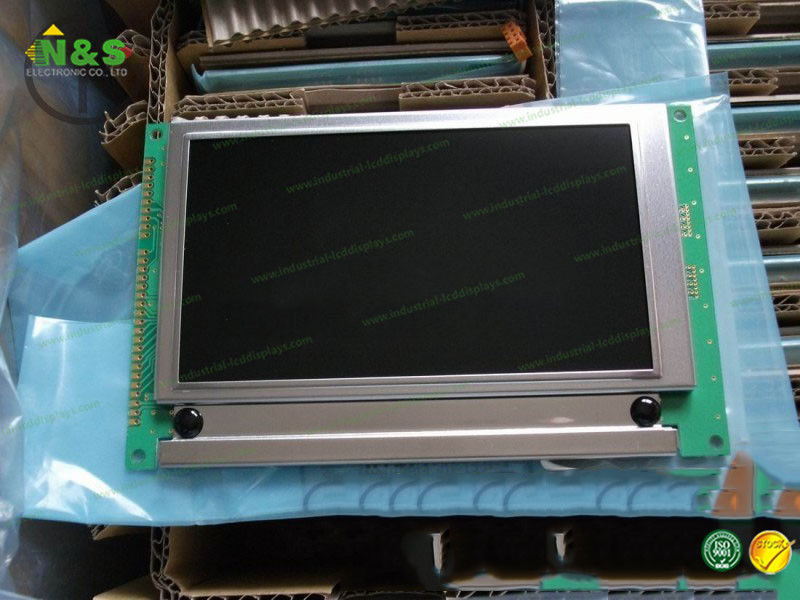

TX14D25VM1BAA   pictures



5.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display 05.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display 15.7 Inch 320×240 Medical Grade Display TX14D25VM1BAA KOE Flat Rectangle Display 2
