Product Details:
|
| Panel Model: | R190E1-L01 | Panel Brand: | CMO |
|---|---|---|---|
| Descrition: | 1280×1024 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 376.32×301.056 Mm | Outline: | 404.2×330×35.7 Mm |
| High Light: | medical lcd panel,medical grade display |
||
R190E1-L01 CMO a-Si TFT-LCD ,19.0 inch, 1280×1024 for Medical Imaging
| Panel Model | R190E1-L01 |
|---|---|
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 2.05Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 376.32×301.056 mm (H×V) |
| Bezel Area | 380.2×305.0 mm (H×V) |
| Outline Dimension | 404.2×330 mm (H×V) |
| Outline Depth | 35.2/35.7 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
| Display Mode | LCS MVA, Normally Black, Transmissive |
|---|---|
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 74% NTSC (CIE1931) |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 65.4W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
| PB050IC-01D | Innolux | 5.0" | 1080×1920 |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
| V400DK1-QE2 | Innolux | 40" | 3840×2160 |
| V650DK1-QS3 | Innolux | 65" | 3840×2160 |
| V400HK7-PE1 | Innolux | 40" | 1920×1080 |
| V580DJ2-QS5 | Innolux | 58" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information

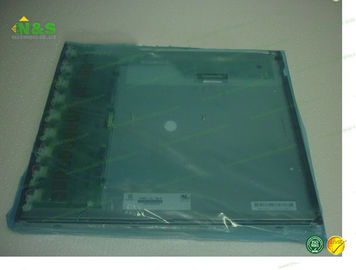

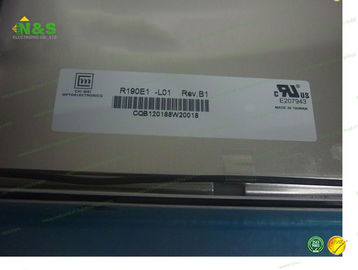

R190E1-L01 Pictures
