Product Details:
|
| Panel Model: | T-51512D121J-FW-A-AB | Panel Brand: | OPTREX |
|---|---|---|---|
| Descrition: | 800×600 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 246×184.5 Mm | Outline: | 280×210×12.5 Mm |
| High Light: | medical lcd panel,medical grade display |
||
T-51512D121J-FW-A-AB OPTREX a-Si TFT-LCD ,12.1 inch, 800×600 for 60Hz
| Panel Model | T-51512D121J-FW-A-AB |
|---|---|
| Panel Brand | OPTREX |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | AA121SL01 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Dot Resolution | 800(RGB)×600 (SVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 720g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.332; Wy:0.367 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| KCS072VG1MB-G60 | Kyocera | 7.2" | 640×480 |
| KCS072VG1MB-G42 | Kyocera | 7.2" | 640×480 |
| KCS072VG1MA-A00 | Kyocera | 7.2" | 640×480 |
| KCS057QV1AA-A03 | Kyocera | 5.7" | 320×240 |
| KCS057QV1BK-G20 | Kyocera | 5.7" | 320×240 |
| KHS072VG2AB-G01 | Kyocera | 7.2" | 640×480 |
| KG057QV1CA-G60 | Kyocera | 5.7" | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

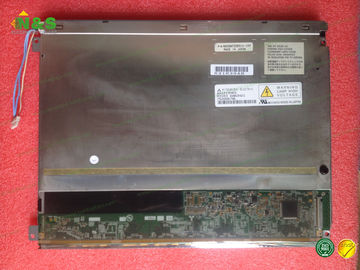

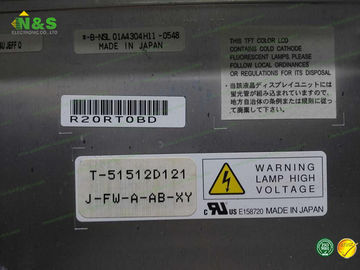

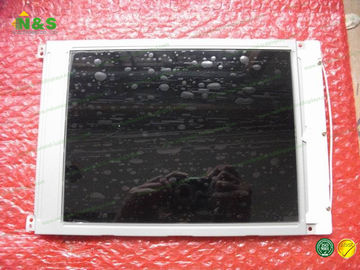

T-51512D121J-FW-A-AB pictures
