Product Details:
|
| Panel Model: | KCG062HV1AE-G00 | Panel Brand: | Kyocera |
|---|---|---|---|
| Descrition: | 640×240 | Panel Type: | CSTN-LCD |
| Active Area: | 147.82×55.42 Mm | Outline: | 174.2×73.4×13.5 Mm |
| High Light: | medical lcd screen,medical grade display |
||
New and original KCG062HV1AE-G00 Kyocera CSTN-LCD ,6.2 inch, 640×240 for Industrial Application
| Panel Model | KCG062HV1AE-G00 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,6.2 inch, 640×240 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 640(RGB)×240 (HVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 109 PPI |
| Aspect Ratio | 8:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.077×0.231 mm (H×V) |
| Pixel Pitch | 0.231×0.231 mm (H×V) |
| Weight | 170g (Typ.) |
| Surface | Glare (Haze 0%) |
| Active Area | 147.82×55.42 mm (H×V) |
| Bezel Area | 152.4×60.0 mm (H×V) |
| Outline Dimension | 174.2×73.4 mm (H×V) |
| Outline Depth | 9.4/13.5 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | STN, Normally Black, Transmissive |
|---|---|
| Brightness | 130 cd/m² (Typ.) |
| Contrast Ratio | 30 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 190/180 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/30/20 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 75Hz |
|---|---|
| Reverse Scan | No |
| Driving Method | Duty: 1/240 |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-56015GNB-LW-AAN | Kyocera | 5.7" | 320×240 |
| KCS3224ASTT-X7 | Kyocera | 5.7" | 320×240 |
| KCS3224ASTT-X9 | Kyocera | 5.7" | 320×240 |
| KCG057QV1DB-G900 | Kyocera | 5.7" | 320×240 |
| KCS6448ESTT-X5 | Kyocera | 7.7" | 640×480 |
| KCG057QV1DH-G68 | Kyocera | 5.7" | 320×240 |
| KCG057QV1DF-G00 | Kyocera | 5.7" | 320×240 |
| KS3224ASTT-FW-X20 | Kyocera | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

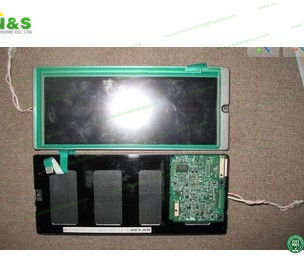

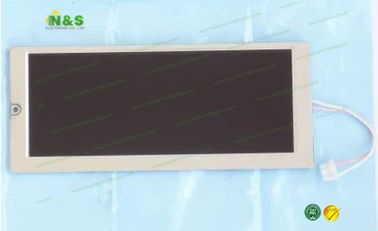

KCG062HV1AE-G00 pictures
