Product Details:
|
| Panel Model: | NL3224AC35-06 | Panel Brand: | NEC |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 111.36×83.52 Mm | Outline: | 134×110 Mm |
| High Light: | medical lcd screen,medical lcd panel |
||
NL3224AC35-06 NEC a-Si TFT-LCD ,5.5 inch, 320×240 for 60Hz
| Panel Model | NL3224AC35-06 |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,5.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
| Vibration Resistance | 3.0G (29.4 m/s²) |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.116×0.348 mm (H×V) |
| Pixel Pitch | 0.348×0.348 mm (H×V) |
| Weight | 285/330g (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 111.36×83.52 mm (H×V) |
| Bezel Area | 117.0×87.0 mm (H×V) |
| Outline Dimension | 134×110 mm (H×V) |
| Outline Depth | 16.0±0.5 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 85 : 1 (Typ.) (Transmissive) |
| Display Color | Full color () |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 50/50/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
| Total Power Consumption | 8.0W (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL6448HL11-02 | NLT | 3.5" | 640×480 |
| NL12876AC18-03KD | NLT | 10.6" | 1280×768 |
| NL12876AC18-03BD | NLT | 10.6" | 1280×768 |
| NL10276BC13-01BD | NLT | 6.5" | 1024×768 |
| NL10276BC28-27E | NLT | 14.1" | 1024×768 |
| NL10276BC28-24C | NLT | 14.1" | 1024×768 |
| NL2432HC22-30B | NLT | 3.5" | 240×320 |
| NL1216ER26-02 | NLT | 2.0" | 120×160 |
We also have other industrial LCD panels, pls contact to us for the further information

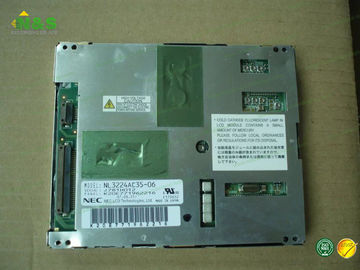

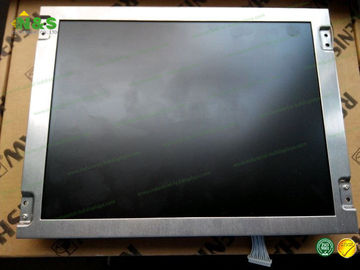

NL3224AC35-06pictures
