Product Details:
|
| Panel Model: | LQ150X1LG81 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 1024×768 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 304.1×228.1 Mm | Outline: | 326×252×11.7 Mm |
| High Light: | medical lcd panel,medical grade display |
||
LQ150X1LG81 SHARP a-Si TFT-LCD ,15.0 inch, 1024×768 for Medical Imaging
| Panel Model | LQ150X1LG81 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | FU-15-028 |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -25 ~ 60 °C |
| Remarks | Compliant with the PSWG standard |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 326×252 mm (H×V) |
| Outline Depth | 11.2±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 9.8W |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM320195 | SHARP | 5.7" | 320×240 |
| LM320194 | SHARP | 5.7" | 320×240 |
| LM24013W | SHARP | 4.6" | 240×64 |
| LM065HB1T01 | SHARP | 6.5" | 640×240 |
| LM32019P5R | SHARP | 5.7" | 320×240 |
| LM32004 | SHARP | 5.7" | 320×240 |
| LM80C209 | SHARP | 11.3" | 800×600 |
| LM057QB1T10 | SHARP | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

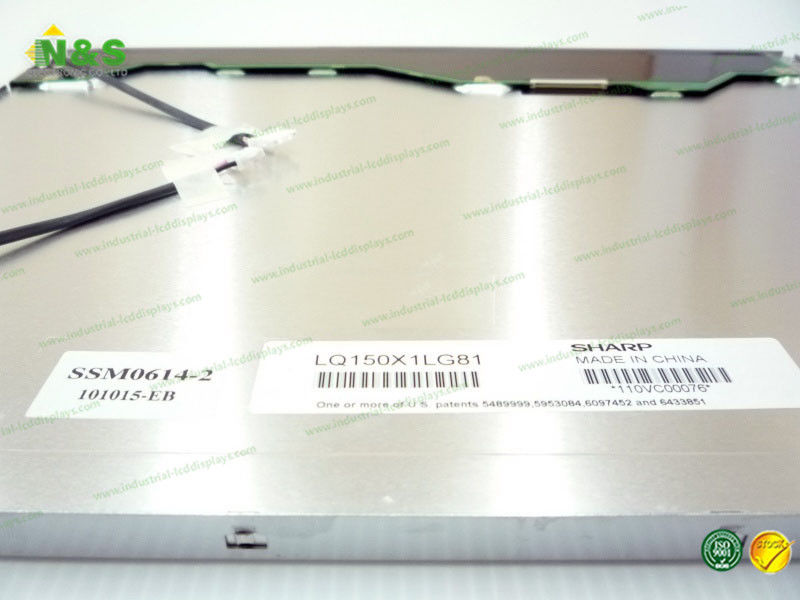

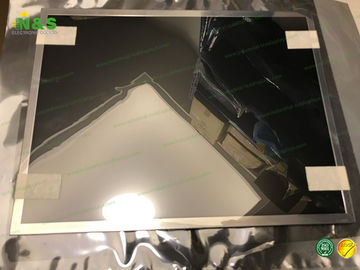

LQ150X1LG81 pictures
