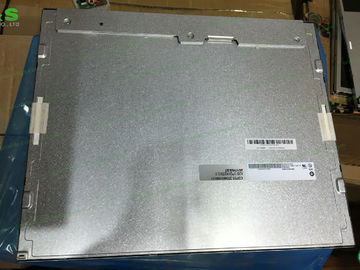

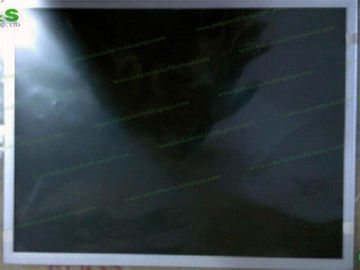

15.0 Inch Medical Grade Lcd Monitors 1024×768 TX38D18VM2BAA REV.B HITACHI

15.0 Inch Medical Grade Lcd Monitors 1024×768 TX38D18VM2BAA REV.B HITACHI

    • 15.0 Inch Medical Grade Lcd Monitors 1024×768 TX38D18VM2BAA REV.B HITACHI
    • 15.0 Inch Medical Grade Lcd Monitors 1024×768 TX38D18VM2BAA REV.B HITACHI
    • 15.0 Inch Medical Grade Lcd Monitors 1024×768 TX38D18VM2BAA REV.B HITACHI
  • 15.0 Inch Medical Grade Lcd Monitors 1024×768 TX38D18VM2BAA REV.B HITACHI

    Product Details:

    Place of Origin: Korea
    Brand Name: HITACHI
    Certification: ISO9001
    Model Number: TX38D18VM2BAA REV.B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: TX38D18VM2BAA REV.B Panel Brand: HITACHI
    Descrition: 1024×768 Panel Type: A-Si TFT-LCD
    Active Area: 304.1×228.1 Mm Outline: 326.5×253.5×12.03 Mm

    TX38D18VM2BAA REV.B HITACHI a-Si TFT-LCD ,15.0 inch, 1024×768 for Medical Imaging


    TX38D18VM2BAA REV.B Basic Information

    Panel Model TX38D18VM2BAA REV.B
    Panel Brand HITACHI
    Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
    Panel Type a-Si TFT-LCD
    Operating Temperature -30 ~ 70 °C
    Storage Temperature -30 ~ 80 °C



    Packaging & Delivery
    Packaging: Safety Package For all of our LCD Screen Panel Replacements.
    Details: 1. Antistatic bag
    2. Layers of cartons
    3. Foam Box
    4. Carton Box.

    TX38D18VM2BAA REV.B Mechanical Features

    Dot Resolution 1024(RGB)×768 (XGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 85 PPI
    Aspect Ratio 4:3 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.099×0.297 mm (H×V)
    Pixel Pitch 0.297×0.297 mm (H×V)
    Weight 1.10Kgs (Typ.)
    Surface Antiglare
    Active Area 304.1×228.1 mm (H×V)
    Bezel Area 307.4×231.3 mm (H×V)
    Outline Dimension 326.5×253.5 mm (H×V)
    Outline Depth 12.03 (Max.) mm
    Holes & Brackets Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without


    Shipment:
    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.
    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
    (4) Delivery time is approximate:
    ------Via DHL, Fedex, UPS: 3-7working days
    ------Via EMS:7-15 working days
    ------Via Direct Express Line:1-3 working days.

    TX38D18VM2BAA REV.B Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 1100 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut 59% NTSC (CIE1931)
    Response Time 25 (Typ.)(Tr+Td)
    Viewing Angle 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction 12 o'clock
    White color Chromaticity Wx:0.330; Wy:0.350
    White Variation 1.25/1.43 (Typ./Max.)(5 points)
    Sunlight Readable Y


    The reasons you choose us
    1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    TX38D18VM2BAA REV.B Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan Yes (180°)
    Total Power Consumption 17.9W (Typ.)




    Below are our other LCD panels stock for your easy reference

    Panel Model Brand Size Resolution
    SX21V001-Z4A KOE 8.2" 640×480
    SX21V001-Z4 KOE 8.2" 640×480
    SX19V009-ZZA KOE 7.5" 640×480
    SX19V009 KOE 7.5" 640×480
    SX19V007-ZZA KOE 7.5" 640×480
    SX19V007-Z2A KOE 7.5" 640×480
    SX19V007 KOE 7.5" 640×480
    SX19V001-ZZB KOE 7.5" 640×480
