Product Details:
|
| Panel Model: | LQ201U1LW11Z | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 1600×1200 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 408×306 Mm | Outline: | 436×335 Mm |
| High Light: | medical lcd panel,medical grade display |
||
LQ201U1LW11Z SHARP a-Si TFT-LCD ,20.1 inch, 1600×1200 for 60Hz
| Panel Model | LQ201U1LW11Z |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,20.1 inch, 1600×1200 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
| Remarks | Mass production from Apr. 2005 |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Dot Resolution | 1600(LCR)×1200 (UXGA) |
|---|---|
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 99 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.085×0.255 mm (H×V) |
| Pixel Pitch | 0.255×0.255 mm (H×V) |
| Weight | 3.80Kgs (Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 408×306 mm (H×V) |
| Bezel Area | 413.2×311.2 mm (H×V) |
| Outline Dimension | 436×335 mm (H×V) |
| Outline Depth | 27.5 (Typ.) mm |
| Holes & Brackets | Side mounting holes (8-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
| Display Mode | ASV, Normally Black, Transmissive |
|---|---|
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | Grayscale (8-bit) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.294; Wy:0.309 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 32.9W |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
| LQ0DASA469 | SHARP | 4.7" | 720×1280 |
| LQ133M1JW08A | SHARP | 13.3" | 1920×1080 |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information

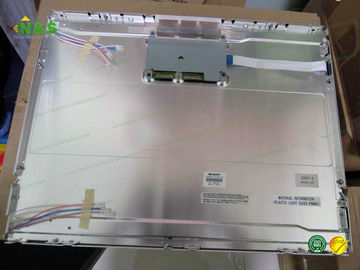

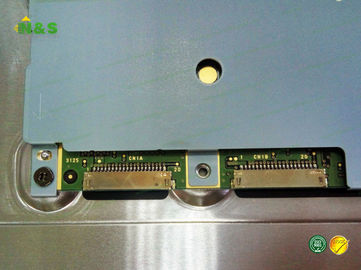

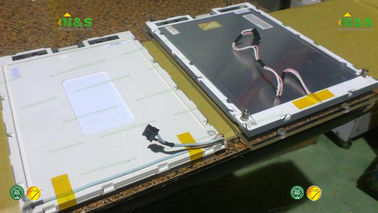

LQ201U1LW11Z pictures
