Product Details:
|
| Panel Model: | TCG057QVLCS-H50 | Panel Brand: | Kyocera |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 115.2×86.4 Mm | Outline: | 144×104.8×13.5 Mm |
| High Light: | medical lcd panel,medical grade display |
||
TCG057QVLCS-H50 Kyocera a-Si TFT-LCD ,5.7 inch, 320×240 for Industrial Application
| Panel Model | TCG057QVLCS-H50 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 210g (Typ.) |
| Surface | Glare (Haze 0%), Antireflection |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 118.4×89.6 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 13.0±0.5 mm |
| Holes & Brackets | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity | Wx:0.320; Wy:0.340 |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Reverse Scan | Yes (U/D, L/R) |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| KL6448USTS-FFW | Kyocera | 6.9" | 640×480 |
| F-55471GNBJ-LW-AHN | Kyocera | 5.2" | 240×64 |
| F-55471GNFJ-SLW-ADN | Kyocera | 5.2" | 240×64 |
| F-55471GNFJ-SLW-AIN | Kyocera | 5.2" | 240×64 |
| F-51900NCU-FW-ACN | Kyocera | 5.7" | 320×240 |
| F-51900NCU-LW-AIN | Kyocera | 5.7" | 320×240 |
| F-51900NCU-LW-AHN | Kyocera | 5.7" | 320×240 |
| F-51320GNF-S-AGN | Kyocera | 2.8" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information

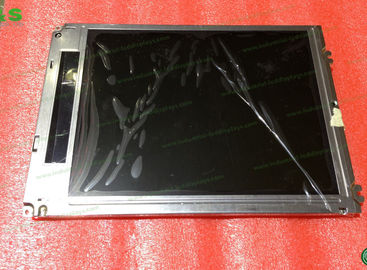

TCG057QVLCS-H50pictures
