Product Details:
|
| Panel Model: | R208R1-L01 | Panel Brand: | CMO |
|---|---|---|---|
| Descrition: | 2048×1536 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 423.9×318 Mm | Outline: | 457×350 Mm |
| High Light: | medical lcd panel,medical grade display |
||
R208R1-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for 60Hz
| Panel Model | R208R1-L01 |
|---|---|
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,20.8 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | ITQX21J |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 2048(LCR)×1536 (QXGA) |
|---|---|
| Pixel Configuration | LCR Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 2.30Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 423.9×318 mm (H×V) |
| Bezel Area | 427.9×322.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 45.0 (Typ.) mm |
| Holes & Brackets | Side mounting holes (8-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | Grayscale (8-bit) |
| Response Time | 25/25 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.294; Wy:0.309 |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 60.0W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
| P097ZCA-1Z2 | Innolux | 9.7" | 1024×768 |
| V500DK1-QS1 | Innolux | 50" | 3840×2160 |
| P080DCE-3F0 | Innolux | 8.0" | 800×1280 |
| PJ055IC-01A | Innolux | 5.5" | 1080×1920 |
| PP050IA-03B | Innolux | 5.0" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information

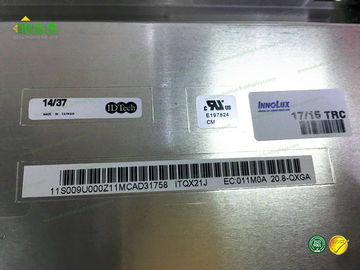

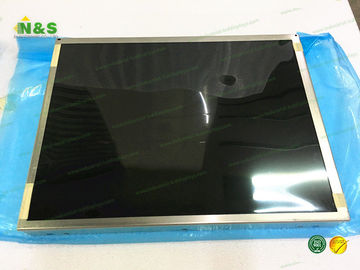

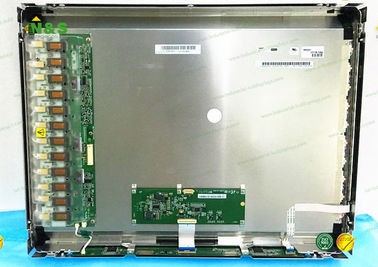

R208R1-L01 pictures
