Product Details:
|
Panel Model: | TX17D01VM2EAB | Panel Brand: | HITACHI |
---|---|---|---|
Descrition: | 640×480 | Panel Type: | A-Si TFT-LCD |
Active Area: | 132.48×99.36 Mm | Outline: | 153×118 Mm |
High Light: | medical lcd screen,medical lcd panel |
New and original TX17D01VM2EAB HITACHI a-Si TFT-LCD ,6.5 inch, 640×480 for 60Hz
Panel Model | TX17D01VM2EAB |
---|---|
Panel Brand | HITACHI |
Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -20 ~ 70 °C |
Storage Temperature | -30 ~ 80 °C |
Vibration Resistance | 2.0G (19.6 m/s²) |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Dot Resolution | 640(RGB)×480 (VGA) |
---|---|
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 122 PPI |
Aspect Ratio | 4:3 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.069×0.207 mm (H×V) |
Pixel Pitch | 0.207×0.207 mm (H×V) |
Weight | 190g (Typ.) |
Surface | Glare (Haze 0%), Antireflection |
Active Area | 132.48×99.36 mm (H×V) |
Bezel Area | 135.9×102.8 mm (H×V) |
Outline Dimension | 153×118 mm (H×V) |
Outline Depth | 9.1 (Typ.) mm |
Holes & Brackets | Side mounting holes (4-M2) |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Display Mode | TN, Normally White, Transmissive |
---|---|
Brightness | 1000 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
Display Color | 262K (6-bit) |
Color Gamut | 50% NTSC (CIE1931) |
Response Time | 30 (Typ.)(Tr+Td) |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | 6 o'clock |
White color Chromaticity | Wx:0.300; Wy:0.310 |
White Variation | 1.43 (Max.)(9 points) |
Sunlight Readable |
Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Vertical Frequency | 60Hz |
---|---|
Reverse Scan | Yes (180°) |
Total Power Consumption | 4.56W (Typ.) |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
SP24V01L0ALZZ | KOE | 9.4" | 640×480 |
SP14N02L6ALCZ | KOE | 5.1" | 240×128 |
SP12N01L6ALCZ | KOE | 4.8" | 256×64 |
SP24V001-A | KOE | 9.4" | 640×480 |
SP10Q010-T | KOE | 3.8" | 320×240 |
SP10Q010-ZZA | KOE | 3.8" | 320×240 |
SP10Q010-TZA | KOE | 3.8" | 320×240 |
SP10Q010 | KOE | 3.8" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

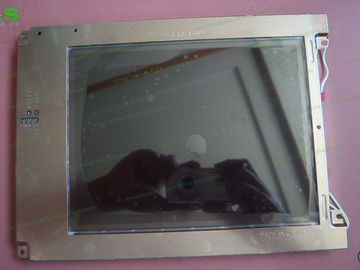

TX17D01VM2EAB pictures
