Product Details:
|
| Panel Model: | S290AJ1-LE1 | Panel Brand: | INNOLUX |
|---|---|---|---|
| Descrition: | 1920×540 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 698.4×196.425 Mm | Outline: | 731.46×229.49×30.2 Mm |
| High Light: | medical lcd panel,medical grade display |
||
S290AJ1-LE1 INNOLUX a-Si TFT-LCD ,29.0 inch, 1920×540 for Industrial Application
| Panel Model | S290AJ1-LE1 |
|---|---|
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,29.0 inch, 1920×540 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | 1/2 cut of 31.5" |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1920(RGB)×540 |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 69 PPI |
| Aspect Ratio | >3:1 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.12125×0.36375 mm (H×V) |
| Pixel Pitch | 0.36375×0.36375 mm (H×V) |
| Weight | 2.4±0.12g |
| Surface | Antiglare (Haze 3.4%) |
| Active Area | 698.4×196.425 mm (H×V) |
| Bezel Area | 702.4×200.43 mm (H×V) |
| Outline Dimension | 731.46×229.49 mm (H×V) |
| Outline Depth | 19.8/30.2 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
| Display Mode | Super MVA, Normally Black, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 4500 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 8.5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.280; Wy:0.290 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V650DK2-QS1 | Innolux | 65" | 3840×2160 |
| F03516-01Z | Innolux | 3.5" | 320×480 |
| F04307-02Z | Innolux | 4.3" | 480×800 |
| N156BGE-P11 | Innolux | 15.6" | 1366×768 |
| CT018TN01 | Innolux | 1.8" | 128×160 |
| F03208-01V | Innolux | 3.2" | 360×640 |
| F03017-01U | Innolux | 3.0" | 240×400 |
| F03010-04V | Innolux | 3.0" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information

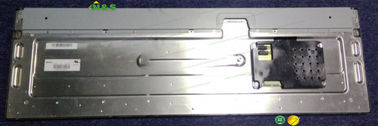

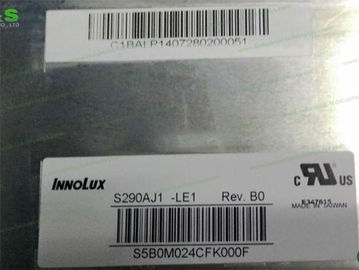

S290AJ1-LE1 pictures
