Product Details:
|
| Panel Model: | LD470DUP-SEH2 | Panel Brand: | LG Display |
|---|---|---|---|
| Descrition: | 1920×1080 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 1039.68×584.82 Mm | Outline: | 1070.8×615.2×70.9 Mm |
| High Light: | medical lcd screen,medical lcd panel |
||
LD470DUP-SEH2 LG Display a-Si TFT-LCD ,47 inch, 1920×1080 for Medical Imaging
| Panel Model | LD470DUP-SEH2 |
|---|---|
| Panel Brand | LG Display |
| Descrition | a-Si TFT-LCD ,47 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | LD470DUP (SE)(H2) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 46 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1805×0.5415 mm (H×V) |
| Pixel Pitch | 0.5415×0.5415 mm (H×V) |
| Weight | 12.0/13.5Kgs (Typ./Max.) |
| Surface | Hard coating (3H), Reflection 2.0% (Typ.) |
| Active Area | 1039.68×584.82 mm (H×V) |
| Bezel Area | 1048.8×593.2 mm (H×V) |
| Outline Dimension | 1070.8×615.2 mm (H×V) |
| Outline Depth | 69.9±1.0 mm |
| Landscape or Portrait | Landscape / Portrait |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 2000 cd/m² (Typ.) |
| Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (10-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 10 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.279; Wy:0.292 |
| White Variation | 1.3 (Max.)(5 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 120Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 223W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LC150WXD-EL01 | LG Display | 15.0" | 1366×768 |
| LH220Q14-ED02 | LG Display | 2.2" | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0" | 320×240 |
| LH240Q02-ED01 | LG Display | 2.4" | 240×320 |
| LB060X02-RD01 | LG Display | 6.0" | 1024×768 |
| LB115U01-RD01 | LG Display | 11.5" | 1600×1200 |
| LB097WX1-RD01 | LG Display | 9.7" | 1200×825 |
| LB071WS1-RD01 | LG Display | 7.1" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information

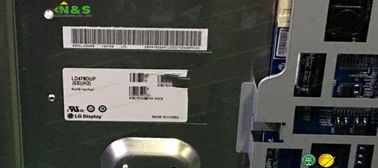

LD470DUP-SEH2 pictures
