Product Details:
|
| Panel Model: | NL12880BC20-07F | Panel Brand: | NLT |
|---|---|---|---|
| Descrition: | 1280×800 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 261.12×163.2 Mm | Outline: | 277.7×180.6×9.2 Mm |
| High Light: | medical lcd screen,medical grade display |
||
New and original NL12880BC20-07F NLT a-Si TFT-LCD ,12.1 inch, 1280×800 for Medical Imaging
| Panel Model | NL12880BC20-07F |
|---|---|
| Panel Brand | NLT |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | ColorXcell |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Dot Resolution | 1280(RGB)×800 (WXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 124 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.068×0.204 mm (H×V) |
| Pixel Pitch | 0.204×0.204 mm (H×V) |
| Weight | 470/500g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 261.12×163.2 mm (H×V) |
| Bezel Area | 266.1×168.2 mm (H×V) |
| Outline Dimension | 277.7×180.6 mm (H×V) |
| Outline Depth | 8.7±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1800 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Typ.)(5 points) |
| Sunlight Readable | Y |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | TBD |
Below are our other LCD panels stock for your easy reference:
| NL2432HC22-22B | NLT | 3.5" | 240×320 | 10 |
| NL2432HC22-22A | NLT | 3.5" | 240×320 | 10 |
| NL2432HC22-22 | NLT | 3.5" | 240×320 | 10 |
| NL2432HC22-20 | NLT | 3.5" | 240×320 | 10 |
| NL2432HC22-02B | NLT | 3.5" | 240×320 | 10 |
| NL2432HC17-10B | NLT | 2.7" | 240×320 | 10 |
| NL2432HC17-09B | NLT | 2.7" | 240×320 | 10 |
| NL2432HC17-07B | NLT | 2.7" | 240×320 | 10 |
We also have other industrial LCD panels, pls contact to us for the further information

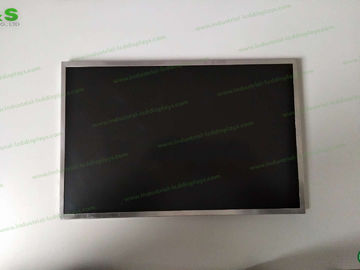

NL12880BC20-07F pictures
