Product Details:
|
| Panel Model: | NL13676BC25-03F | Panel Brand: | NLT |
|---|---|---|---|
| Descrition: | 1366×768 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 344.232×193.536 Mm | Outline: | 363.8×215.9×13.15 Mm |
| High Light: | medical lcd screen,medical grade display |
||
NL13676BC25-03F NLT a-Si TFT-LCD ,15.6 inch, 1366×768 for Industrial Application
| Panel Model | NL13676BC25-03F |
|---|---|
| Panel Brand | NLT |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Dot Resolution | 1366(RGB)×768 (WXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 1.07/1.17Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.232×193.536 mm (H×V) |
| Bezel Area | 347.55×196.85 mm (H×V) |
| Outline Dimension | 363.8×215.9 mm (H×V) |
| Outline Depth | 12.65±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1100 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 16.0W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL2432HC17-07A | NLT | 2.7" | 240×320 |
| NL2432HC17-05B | NLT | 2.7" | 240×320 |
| NL2432HC17-04B | NLT | 2.7" | 240×320 |
| NL2432HC17-02B | NLT | 2.7" | 240×320 |
| NL2432HC17-02A | NLT | 2.7" | 240×320 |
| NL2432HC17-02 | NLT | 2.7" | 240×320 |
| NL2432HC17-01H | NLT | 2.7" | 240×320 |
| NL2432HC17-01 | NLT | 2.7" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

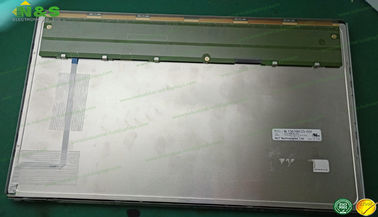

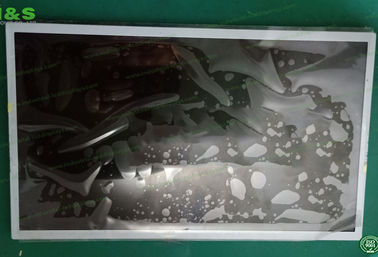

NL13676BC25-03F pictures
