Product Details:
|
| Panel Model: | TCG035QVLPDANN-GN50 | Panel Brand: | Kyocera |
|---|---|---|---|
| Descrition: | 320×240 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 70.56×52.92 Mm | Outline: | 76.9×63.9×5.1 Mm |
| High Light: | medical lcd panel,medical grade display |
||
TCG035QVLPDANN-GN50 Kyocera a-Si TFT-LCD ,3.5 inch, 320×240 for Industrial Application
| Panel Model | TCG035QVLPDANN-GN50 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,3.5 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 320(RGB)×240 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 115 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0735×0.2205 mm (H×V) |
| Pixel Pitch | 0.2205×0.2205 mm (H×V) |
| Weight | 45g |
| Surface | Glare (Haze 0%) |
| Active Area | 70.56×52.92 mm (H×V) |
| Bezel Area | 72.26×54.62 mm (H×V) |
| Outline Dimension | 76.9×63.9 mm (H×V) |
| Outline Depth | 4.9±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 8/22 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.305; Wy:0.330 |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| KHG062HV1AH-G00 | Kyocera | 6.2" | 640×240 |
| KCT150XG4BA-A09 | Kyocera | 15.0" | 1024×768 |
| F-55157GNF-LW-ASN | Kyocera | 5.7" | 320×240 |
| KG057QVLCD-G00 | Kyocera | 5.7" | 320×240 |
| DMF-50840NB-FW-ASE-BFN | Kyocera | 5.7" | 320×240 |
| F-51373GNC-MLW-AC | Kyocera | 3.8" | 240×320 |
| F-51373GNC-MFW-AF | Kyocera | 3.8" | 240×320 |
| F-51373GNC-MFW-AA | Kyocera | 3.8" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

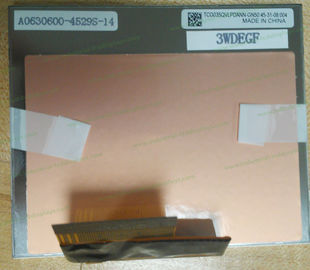

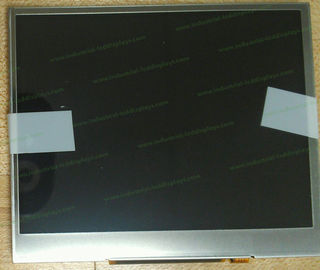

TCG035QVLPDANN-GN50 Pictures
