Product Details:
|
| Panel Model: | R208R3-L01 | Panel Brand: | CMO |
|---|---|---|---|
| Descrition: | 2048×1536 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 423.9×318 Mm | Outline: | 457×350×45.8 Mm |
| High Light: | medical lcd screen,medical grade display |
||

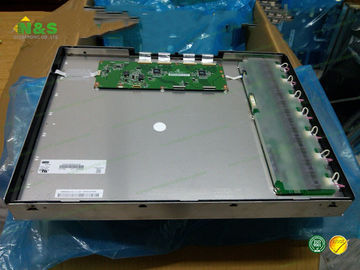

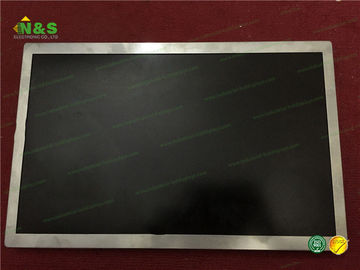

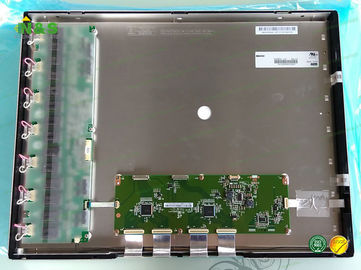

New and original R208R3-L01 CMO a-Si TFT-LCD ,20.8 inch, 2048×1536 for Medical Imaging
| Panel Model | R208R3-L01 |
|---|---|
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,20.8 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 2048(RGB)×1536 (QXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 2.58Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 423.9×318 mm (H×V) |
| Bezel Area | 427.9×322.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 45.0/45.8 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (8-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | IPS, Normally Black, Transmissive |
|---|---|
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.294; Wy:0.309 |
| White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 76.32W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NP055IA-03E | Innolux | 5.5" | 1080×1920 |
| N080ICE-GB1 CELL | Innolux | 8.0" | 800×1280 |
| V650DJ4-QS5 | Innolux | 65" | 3840×2160 |
| F050A08-601 | Innolux | 5.0" | 480×854 |
| V750DK1-QS3 | Innolux | 75" | 3840×2160 |
| PP047IA-03A | Innolux | 4.7" | 540×960 |
| F068A01-6T1 | Innolux | 6.8" | 720×1280 |
| F060A09-604 | Innolux | 6.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information
R208R3-L01
