Product Details:
|
| Panel Model: | TCG104XGLPAPNN-AN40 | Panel Brand: | Kyocera |
|---|---|---|---|
| Descrition: | 1024×768 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 210.432×157.824 Mm | Outline: | 230×180.2×11 Mm |
| High Light: | medical lcd screen,medical lcd panel |
||
TCG104XGLPAPNN-AN40 Kyocera a-Si TFT-LCD ,10.4 inch, 1024×768 for Industrial Application
| Panel Model | TCG104XGLPAPNN-AN40 |
|---|---|
| Panel Brand | Kyocera |
| Descrition | a-Si TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Weight | 480g (Typ.) |
| Surface | Antiglare |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 215.4×161.8 mm (H×V) |
| Outline Dimension | 230×180.2 mm (H×V) |
| Outline Depth | 10.5±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
| Display Mode | AWV, Normally Black, Transmissive |
|---|---|
| Brightness | 1300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Gamut | 51% NTSC (CIE1931) |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.315; Wy:0.340 |
| Sunlight Readable | Y |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-51373GNC-FW-ATN | Kyocera | 3.8" | 240×320 |
| F-51851GNFJ-SLW-AEN | Kyocera | 5.2" | 240×64 |
| F-51852GNBJ-LW-AKN | Kyocera | 2.8" | 128×64 |
| KCG057QVLDG-G77 | Kyocera | 5.7" | 320×240 |
| DMF-50036ZNFU-FW-BBN | Kyocera | 9.6" | 640×200 |
| DMF-50036ZNFU-FW | Kyocera | 9.6" | 640×200 |
| DMF682ANF-EW | Kyocera | 5.3" | 256×128 |
| DMF-50773NB-FW | Kyocera | 5.4" | 240×128 |
We also have other industrial LCD panels, pls contact to us for the further information

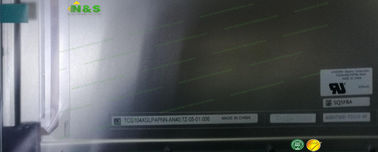

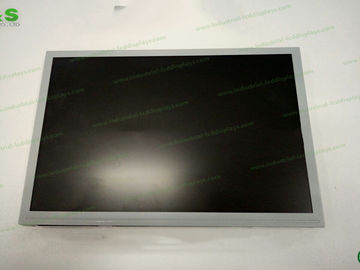

TCG104XGLPAPNN-AN40 pictures
