Product Details:
|
| Panel Brand: | KOE | Size: | 5.1 Inch |
|---|---|---|---|
| Descrition: | 240×128 | Display Mode: | Black/White |
| Active Area: | 119.97×63.97 Mm | Outline: | 159.4×101×12 Mm |
| High Light: | small lcd panel,digital lcd display |
||

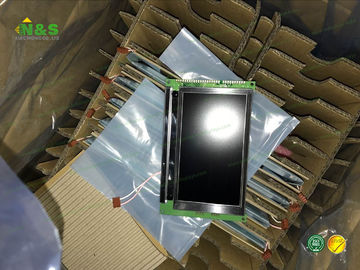

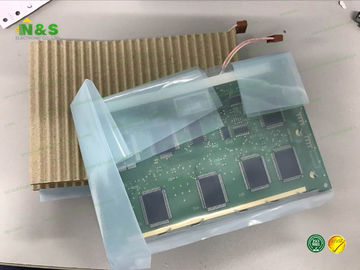

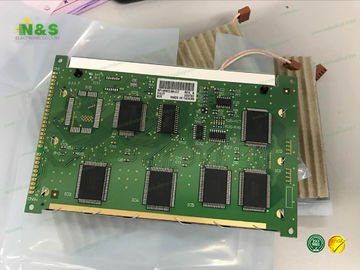

KOE LCD Panel SP14N02L6ALCZ 5.1 inch 240×128 Black/White with 119.97×63.97 mm Active Area
SP14N02L6ALCZ
| Panel Model | SP14N02L6ALCZ |
|---|---|
| Panel Brand | KOE |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Display Mode | STN, Black/White (Negative), Transmissive |
| Active Area | 119.97×63.97 mm |
| Outline | 159.4×101×12 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 20:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Lamp Type | WLED Without Driver |
| Signal Interface | 8-bit parallel , 20 pins |
| Input Voltage | 5.0V (Typ.) |
SP14N02L6ALCZ Basic Information
| Panel Model | SP14N02L6ALCZ |
|---|---|
| Panel Brand | KOE |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
