Product Details:
|
| Panel Brand: | Hitachi | Size: | 5.1 Inch |
|---|---|---|---|
| Panel Type: | FSTN-LCD | Active Area: | 119.97×63.97 Mm |
| Outline: | 159.4×101×12 Mm | Display Colors: | Monochrome |
| High Light: | hitachi lcd display,monochrome lcd panel |
||

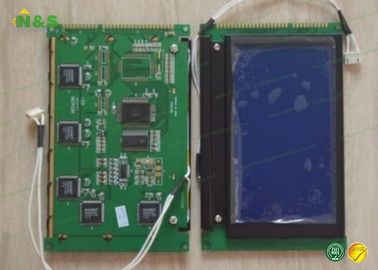

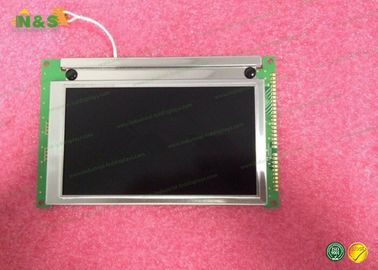

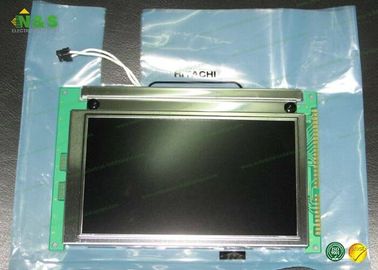

LMG7420PLFC-X Hitachi LCD Panel 5.0 inch for Industrial Application for 75Hz
LMG7420PLFC-X Specification
| Panel Model | LMG7420PLFC-X |
|---|---|
| Panel Brand | HITACHI |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Display Mode | STN, Black/White (Negative), Transmissive |
| Active Area | 119.97×63.97 mm |
| Outline | 159.4×101×12 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 20:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency | 75Hz |
| Lamp Type | 1 pcs CCFL Without Driver |
| Signal Interface | 8-bit parallel , 20 pins |
| Input Voltage | 5.0V (Typ.) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
| Panel Model | LMG7420PLFC-X |
|---|---|
| Panel Brand | HITACHI |
| Descrition | FSTN-LCD ,5.1 inch, 240×128 |
| Panel Type | FSTN-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | Duty:1/128 |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LMG7420PLFC-X Mechanical Features
| Dot Resolution | 240×128 |
|---|---|
| Pixel Configuration | Rectangle |
| Pixel Density | 50 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.50×0.50 mm (H×V) |
| Pixel Pitch | 0.50×0.50 mm (H×V) |
| Weight | 180g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
