Product Details:
|
| Panel Brand: | SHARP | Size: | 10.4 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Active Area: | 211.2×158.4 Mm |
| Outline: | 242.5×179.4×12 Mm | Input Voltage: | 5.0V (Typ.)(VCC) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

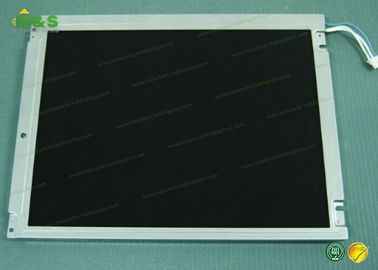

Normally White SHARP LQ10D131 10.4 inch 211.2×158.4 mm Active Area a-Si TFT-LCD
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
LQ10D131 Information
| Panel Model | LQ10D131 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 242.5×179.4×12 mm |
| Surface | Antiglare (Haze 25%), Hard coating (2H) |
| Contrast Ratio | 60:1 (Min.) |
| Display Colors | 4096 (4-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 35/35/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type | 1 pcs CCFL Without Driver |
| Signal Interface | Parallel RGB (1 ch, 4-bit) , 31 pins |
| Input Voltage | 5.0V (Typ.)(VCC) |
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 500g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (2H) |
| Active Area | 211.2×158.4 mm (H×V) |
| Bezel Area | 216.2×163.4 mm (H×V) |
| Outline Dimension | 242.5×179.4 mm (H×V) |
| Outline Depth | 11.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
