Product Details:
|
| Panel Size: | 8.9 Inch | Frequency: | 6 O'clock |
|---|---|---|---|
| Input Voltage: | 3.3V (Typ.) | Panel Type: | A-Si TFT-LCD , LCM |
| Pixel Format: | RGB Vertical Stripe | Display Mode: | TN, Normally White |
| Highlight: | nec tft lcd,nec lcd screen |
||

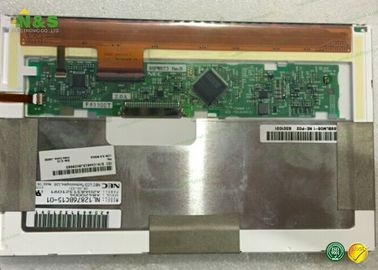

Normally White NL12876BC15-01 8.9 inch 193.92×116.352 mm Active Area with 60Hz LCD display screen
NL12876BC15-01 Specification
| Panel Model | NL12876BC15-01 |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1280×768 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 193.92×116.352 mm |
| Outline | 209.2×130.3×7.7 mm |
| Surface | Clear, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) , CIE1931 56% |
| Response Time | 6/2 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 11S3P WLED Without Driver |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage | 3.3V (Typ.) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | NL12876BC15-01 |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1280×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
