Product Details:
|
| Series: | LTA084A38 | Keywords Desc.: | TOSHIBA 8.4" TN LCM 640×480 300nits CCFL TTL 31pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 8.4" |
| Resolution: | 640×480 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 170.88 (W) × 128.16 (H) Mm (A.A) | Viewing Area: | 175.9 (W) × 134.6 (H) Mm (V.A) |
| Outline Dimension: | 221 (W) × 152.4 (H) Mm | Weight: | 440g (Typ.) |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 250:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
TOSHIBA LTA084A380F 8.4 inch TN LCM 640×480 300nits CCFL TTL 31pins
Our Company Strength in LCD Screen Sourcing:
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
LTA084A380F Quick Details:
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTA084A380F |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.88×128.16 mm |
| Outline : | 221×152.4 mm |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/35/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VDD) |
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.267 mm (H×V) |
| Pixel Pitch : | 0.267×0.267 mm (H×V) |
| Weight : | 440g (Typ.) |
| Active Area : | 170.88×128.16 mm (H×V) |
| Bezel Area : | 175.9×134.6 mm (H×V) |
| Outline Dimension : | 221×152.4 mm (H×V) |
| Outline Depth : | 12.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
| LTA040B470A | TOSHIBA | 4.0" | 480×234 |
| LT104AD18F00 | TOSHIBA | 10.4" | 800×600 |
| TFD60W12 | TOSHIBA | 6.0" | 320×234 |
| LTA149D680F | TOSHIBA | 14.9" | 1280×390 |
| LTA065B615A | TOSHIBA | 6.5" | 400×234 |
| LTA070B340A | TOSHIBA | 7.0" | 480×234 |
| LT121AC25400 | TOSHIBA | 12.1" | 1024×768 |

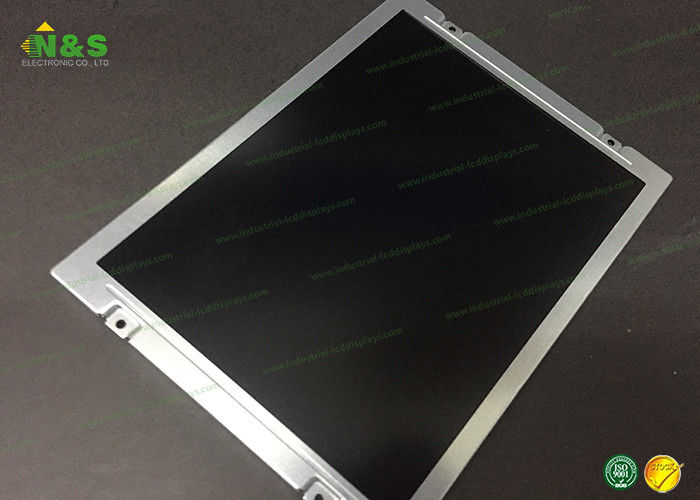

LTA084A380F Picture
