Product Details:
|
| Series: | TD035STEE | Keywords Desc.: | TPO 3.5" TN LCM 480×640 150nits WLED TTL 60pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Mobile Phone | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 480×640 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.28 (W) × 71.04 (H) Mm (A.A) | Outline Dimension: | 64 (W) × 85 (H) Mm |
| Weight: | 45.40.5g | LC Family: | TN |
| Polarizer: | Transflective | Brightness: | 150 (Typ.) |
| Contrast Ratio: | 200:1 (Typ.) | Viewing Angle: | 80/80/80/70 (Typ.)(CR5) (L/R/U/D) |
| Highlight: | industrial touch screen display,industrial lcd panel |
||
TPO TD035STEE1 3.5 inch TN LCM 480×640 150nits WLED TTL 60pins
TD035STEE1 General Features
| Panel Brand : | TPO |
| Panel Model : | TD035STEE1 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.28×71.04 mm |
| Outline : | 64×85 mm |
| Brightness : | 150 cd/m2 (Typ.) |
| Contrast Ratio : | 200:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 37% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Weight : | 45.4±0.5g |
| Active Area : | 53.28×71.04 mm (H×V) |
| Outline Dimension : | 64×85 mm (H×V) |
| Outline Depth : | 4.4 (Max.) mm |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TF022TUYC8 | TPO | 2.2" | 240×320 |
| TF020TUVB2 | TPO | 2.0" | 176×220 |
| TE025THZB4 | TPO | 2.5" | 640×240 |
| AP030NUWC01 | TPO | 3.0" | 960×480(dot) |
| TF020TUYB1 | TPO | 2.0" | 176×220 |

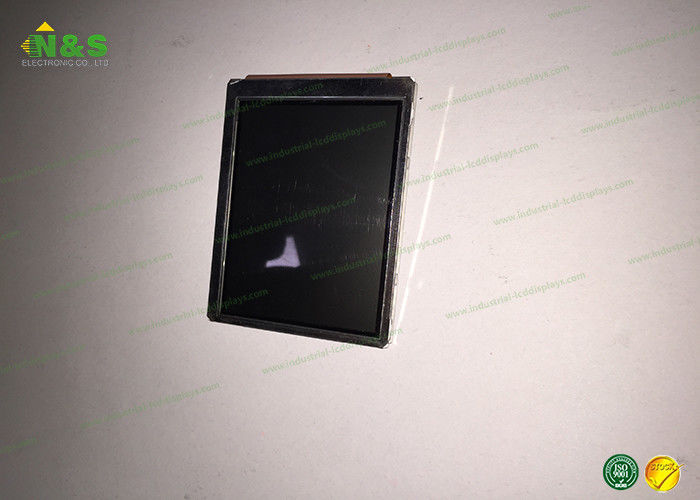

TD035STEE1 Picture
