Product Details:
|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 162×121.5 Mm | Outline: | 200×152×17.77 Mm |
| Highlight: | industrial touch screen display,industrial lcd panel |
||
PVI PD080SL5 LCD Displays 8.0 inch with 162×121.5 mm for Industrial Application
PD080SL5 General Features
| Panel Brand : | PVI |
| Panel Model : | PD080SL5 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 162×121.5 mm |
| Outline : | 200×152×17.77 mm |
| Surface : | Antiglare |
| Brightness : | 1200 cd/m2 (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/55/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S6P WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch : | 0.2025×0.2025 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 162×121.5 mm (H×V) |
| Bezel Area : | 164.4×124.0 mm (H×V) |
| Outline Dimension : | 200×152 mm (H×V) |
| Outline Depth : | 9.2/17.77 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) on left, right bezel |
| Landscape or Portrait : | Landscape type |
Our Advantages
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
| EG020BS011 | PDI | 2.0" | 200×96 |
| EG020AS013 | PDI | 2.0" | 200×96 |
| EG020AS012 | PDI | 2.0" | 200×96 |
| EM027BS014 | PDI | 2.7" | 264×176 |
| EM027BS013 | PDI | 2.7" | 264×176 |
| EM027AS013 | PDI | 2.7" | 264×176 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

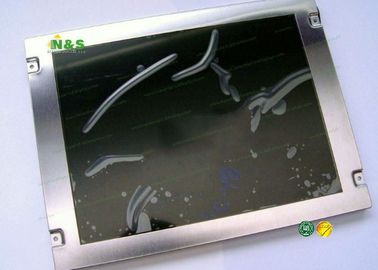

PD080SL5 Picture
