Product Details:
|
| Panel Size: | 5.7 Inch | Active Area: | 115.2×86.4 Mm |
|---|---|---|---|
| Display Colors: | 262K (6-bit) | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

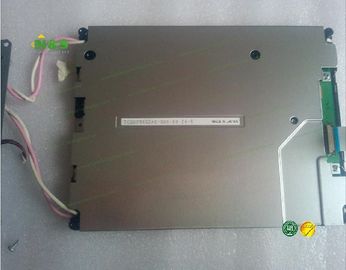

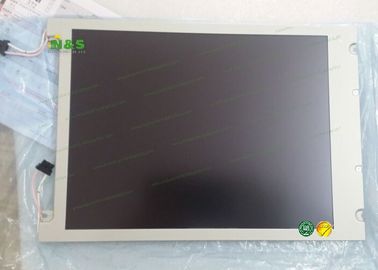

5.7 inch Kyocera TCG057QV1AC-G10 Normally White with 115.2×86.4 mm Active Area
TCG057QV1AC-G10 Characteristic
| Panel Brand : | Kyocera |
| Panel Model : | TCG057QV1AC-G10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.8×13.5 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/70/50 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Kyocera TCG057QV1AC-G10 Mechanical Features
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 220g (Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.8×91.0 mm (H×V) |
| Outline Dimension : | 144×104.8 mm (H×V) |
| Outline Depth : | 13.0±0.5 mm |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
