Product Details:
|
| Panel Size: | 17.0 Inch | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 337.92×270.336 Mm |
| Outline: | 358.5×296.5×14 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | lg lcd display,lg replacement screen |
||
17.0 inch Hard coating LM170E03-TLJ1 LG LCD Panel with 337.92×270.336 mm
LM170E03-TLJ1 Detail
| Panel Brand : | LG Display |
| Panel Model : | LM170E03-TLJ1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 17.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 337.92×270.336 mm |
| Outline : | 358.5×296.5×14 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 1.2/3.8 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 1.35/1.42Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.6×274.0 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 13.5 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC150WXD-EL01 | LG Display | 15.0" | 1366×768 |
| LH220Q14-ED02 | LG Display | 2.2" | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0" | 320×240 |
| LH240Q02-ED01 | LG Display | 2.4" | 240×320 |
| LB060X02-RD01 | LG Display | 6.0" | 1024×768 |
| LB115U01-RD01 | LG Display | 11.5" | 1600×1200 |

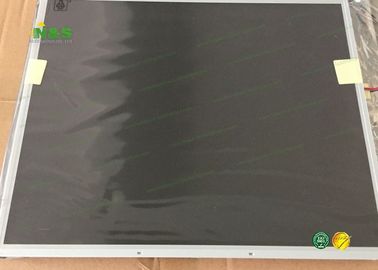

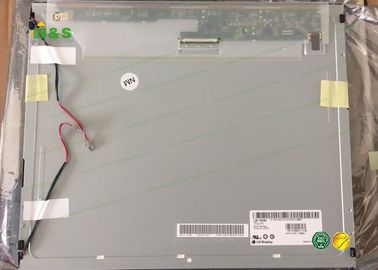

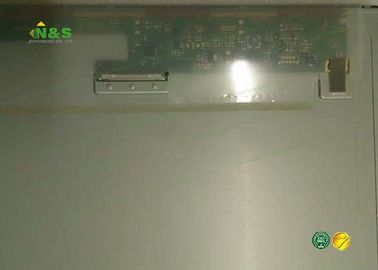

LM170E03-TLJ1 Picture
