Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 246×184.5 Mm |
|---|---|---|---|
| Outline: | 265×205×10 Mm | Surface: | Antiglare, Hard Coating (3H) |
| Brightness: | 330 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Normally White LQ121S1LG75 Sharp LCD Panel 12.1 inch with 246×184.5 mm
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
LQ121S1LG75 Detailed Product Description
| Panel Brand : | SHARP |
| Panel Model : | LQ121S1LG75 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 265×205×10 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 330 cd/m2 (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 76% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 330 cd/m2 (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 76% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.290; Wy:0.305 |
| White Variation : | 1.33 (Max.)(5 points) |
| Sunlight Readable : | N |

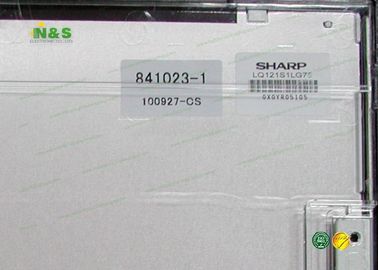

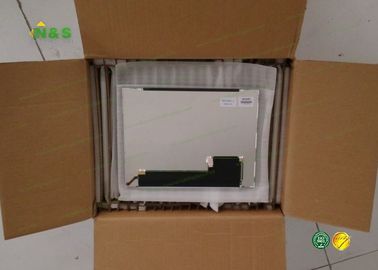

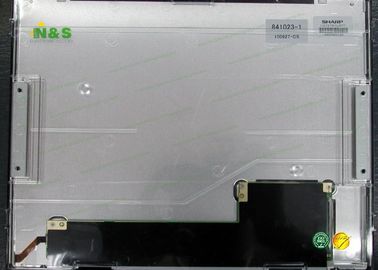

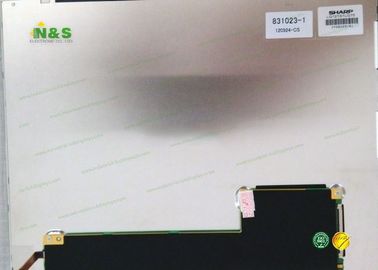

Details Picture for LQ121S1LG75
