Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Outline: | 246.5×179.4×11 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Brightness: | 200 Cd/m² (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Normally White LQ10D36A 10.4 inch Sharp LCD Panel with 211.2×158.4 mm for Industrial Application
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
LQ10D36A General Features
| Panel Brand : | SHARP |
| Panel Model : | LQ10D36A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 246.5×179.4×11 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
| LM320195 | SHARP | 5.7" | 320×240 |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 520g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.6×162.4 mm (H×V) |
| Outline Dimension : | 246.5×179.4 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

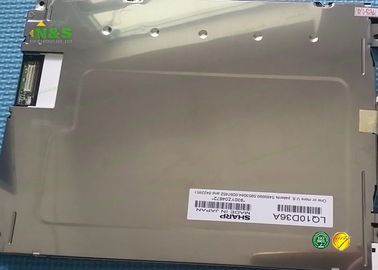

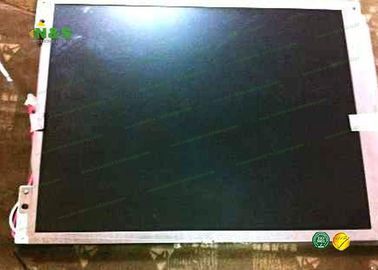

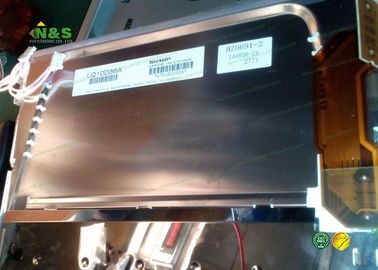

LQ10D36A Picture
