Product Details:
|
| Pixel Density: | 113 PPI | Aspect Ratio: | 3:4 (H:V) |
|---|---|---|---|
| Dot Pitch: | 0.0745×0.2235 Mm (H×V) | Surface: | Clear, Hard Coating (3H) |
| High Light: | nec lcd touch screen,nec lcd screen |
||

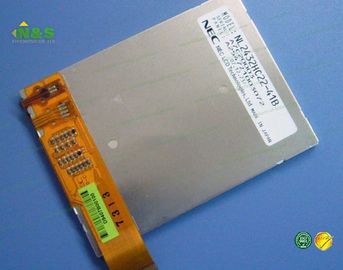

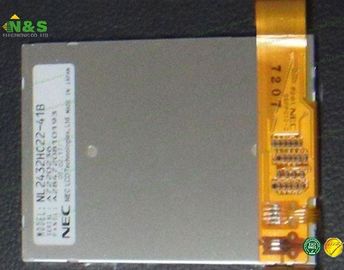

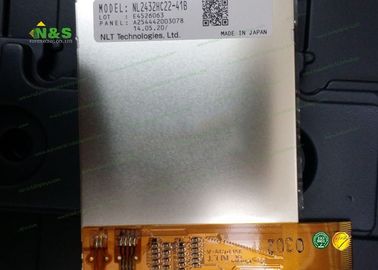

NL2432HC22-41B NEC LCD Panel 3.5 inch 53.64×71.52 mm Active Area
NL2432HC22-41B Characteristic
| Panel Brand : | NEC |
| Panel Model : | NL2432HC22-41B |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 63.5×85×5.7 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 200 cd/m2 (Typ.) |
| Contrast Ratio : | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
NEC NL2432HC22-41B Mechanical Features
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 43.0/45.0g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.64×76.52 mm (H×V) |
| Outline Dimension : | 63.5×85 mm (H×V) |
| Outline Depth : | 4.2/5.7 (Typ./Max.) mm |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
