Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 2.2 Inch |
|---|---|---|---|
| Resolution: | 176(RGB)×220 , QCIF+ | Display Mode: | Normally Black, Transmissive |
| Active Area: | 34.848×43.56 Mm | Outline: | 42.1×56.6 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
2.2 inch LQ022B8UD04 SHARP LCD Pane Normally White LCM 176×220 50 60:1 262K WLED CPU
LQ022B8UD04 Specification
| Panel Size : | 2.2 inch |
|---|---|
| Dot Resolution : | 176(RGB)×220 (QCIF+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 4:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 12.1g (Typ.) |
| Active Area : | 34.848×43.56 mm (H×V) |
| Outline Dimension : | 42.1×56.6 mm (H×V) |
| Outline Depth : | 4.2 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 50 cd/m² (Typ.) |
| Contrast Ratio : | 60 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 18/45 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/30/30 (Typ.)(CR＞5) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.340 |
| Reflectance Ratio : | 11% (Typ.) |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LG 1.3 Circular P-OLED | LG Display | 1.3" | 320×320 |
| LH300WQ1-ED01 | LG Display | 3.0" | 240×400 |
| LB050S01-RD02 | LG Display | 5.0" | 800×600 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| LC430DUY-SHA3 | LG Display | 43" | 1920×1080 |
| LD490EPY-SHP1 | LG Display | 49" | 1920×1080 |
| LD550DPY-SHP1 | LG Display | 55" | 1920×1080 |
| LC490EGY-SHM3 | LG Display | 49" | 3840×2160 |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

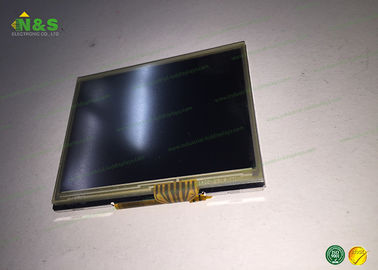

LQ022B8UD04 Picture
