Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 70.56×52.92 Mm | Outline: | 76.9×63.9×4.45 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
3.5 inch LQ035Q1DG04 SHARP Display PANEL 70.56×52.92 mm Active Area
LQ035Q1DG04 Detail
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0735×0.2205 mm (H×V) |
| Pixel Pitch : | 0.2205×0.2205 mm (H×V) |
| Weight : | 41.0g |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 70.56×52.92 mm (H×V) |
| Bezel Area : | 72.1×54.63 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Our Advantages
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |

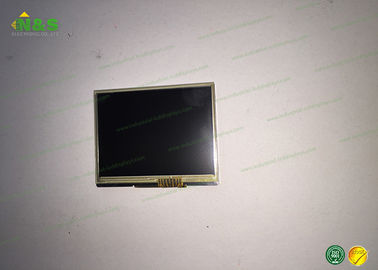

LQ035Q1DG04 Picture
