Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 53.64×71.52 Mm | Outline: | 65×86.2×4.2 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Sharp 3.5 inch LQ035Q5DG12 Display PANEL for Automotive Display panel
LQ035Q5DG12 Specification
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Landscape or Portrait : | Portrait type |
Our Company Strength in LCD Screen Sourcing:
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Display Color : | 262K (6-bit) |
| Sunlight Readable : | Y |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |

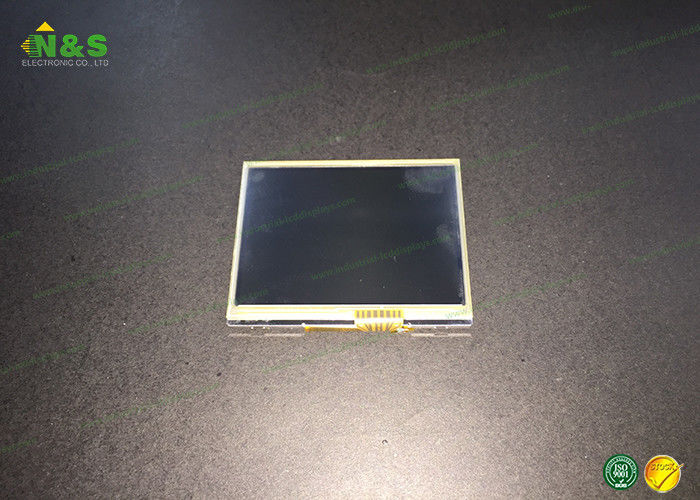

LQ035Q5DG12 Picture
