Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 53.64×71.52 Mm | Outline: | 65×86.2×3.4 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Hard coating LQ035Q7DH03 SHARP Display PANEL 3.5 inch with 53.64×71.52 mm Active
LQ035Q7DH03 Information
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 34.0g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.4×75.2 mm (H×V) |
| Outline Dimension : | 65×86.2 mm (H×V) |
| Outline Depth : | 3.2±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 150 cd/m² (Typ.) |
| Contrast Ratio : | 80 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 3:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Reflectance Ratio : | 2.5/4% (Min./Typ.) |
| Sunlight Readable : | Y |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

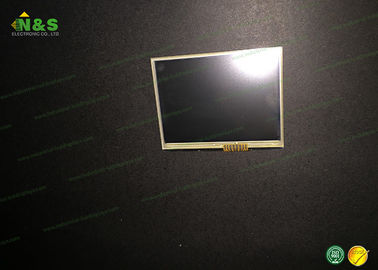

LQ035Q7DH03 Picture
