Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.8 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 57.6×76.8 Mm | Outline: | 69×88.6 Mm |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
3.8 inch LQ038Q5DR02 SHARP Display PANEL Normally White LCM 240×320 90 75:1 262K WLED
LQ038Q5DR02 Information
| Panel Size : | 3.8 inch |
|---|---|
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 42.0g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 57.6×76.8 mm (H×V) |
| Bezel Area : | 61.2×80.4 mm (H×V) |
| Outline Dimension : | 69×88.6 mm (H×V) |
| Outline Depth : | 3.4 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 75 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White Variation : | 1.17/1.33 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 7/11% (Min./Typ.) |
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

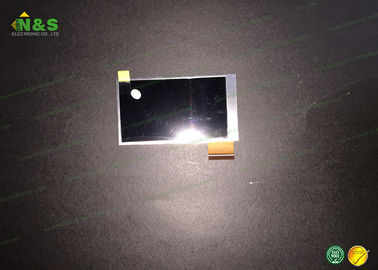

LQ038Q5DR02 Picture
