Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.8 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 57.6×76.8 Mm | Outline: | 69×88.6 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ038Q7DB03 SHARP Display PANEL 3.8 inch with 57.6×76.8 mm Active Area
LQ038Q7DB03 Specification
| Panel Size : | 3.8 inch |
|---|---|
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 42.0g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 57.6×76.8 mm (H×V) |
| Bezel Area : | 61.2×80.4 mm (H×V) |
| Outline Dimension : | 69×88.6 mm (H×V) |
| Outline Depth : | 3.4 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 75 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White Variation : | 1.17/1.33 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 7/11% (Min./Typ.) |
| Sunlight Readable : | Y |

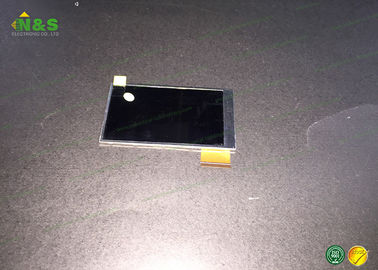

LQ038Q7DB03 Picture
