Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Active Area: | 261.12×163.2 Mm | Outline: | 276.8×178.5×7.8 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Brightness: | 180 Cd/m² (Typ.) |
| Contrast Ratio: | 700:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally Black NL12880BC20-02D NEC LCD Panel 12.1 inch LCM 1280×800 180 700:1 262K/16.7M CCFL LVDS
NL12880BC20-02D NEC LCD Panel Detail
| Panel Brand : | NEC |
| Panel Model : | NL12880BC20-02D |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Active Area : | 261.12×163.2 mm |
| Outline : | 276.8×178.5×7.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 180 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.068×0.204 mm (H×V) |
| Pixel Pitch : | 0.204×0.204 mm (H×V) |
| Weight : | 350/370g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 261.12×163.2 mm (H×V) |
| Bezel Area : | 264.1×166.2 mm (H×V) |
| Outline Dimension : | 276.8×178.5 mm (H×V) |
| Outline Depth : | 7.5±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

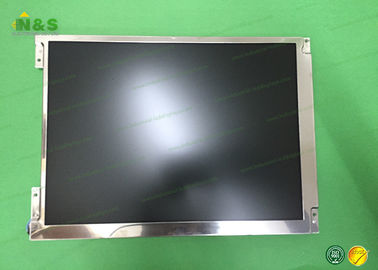

NL12880BC20-02D NEC LCD Panel Picture
